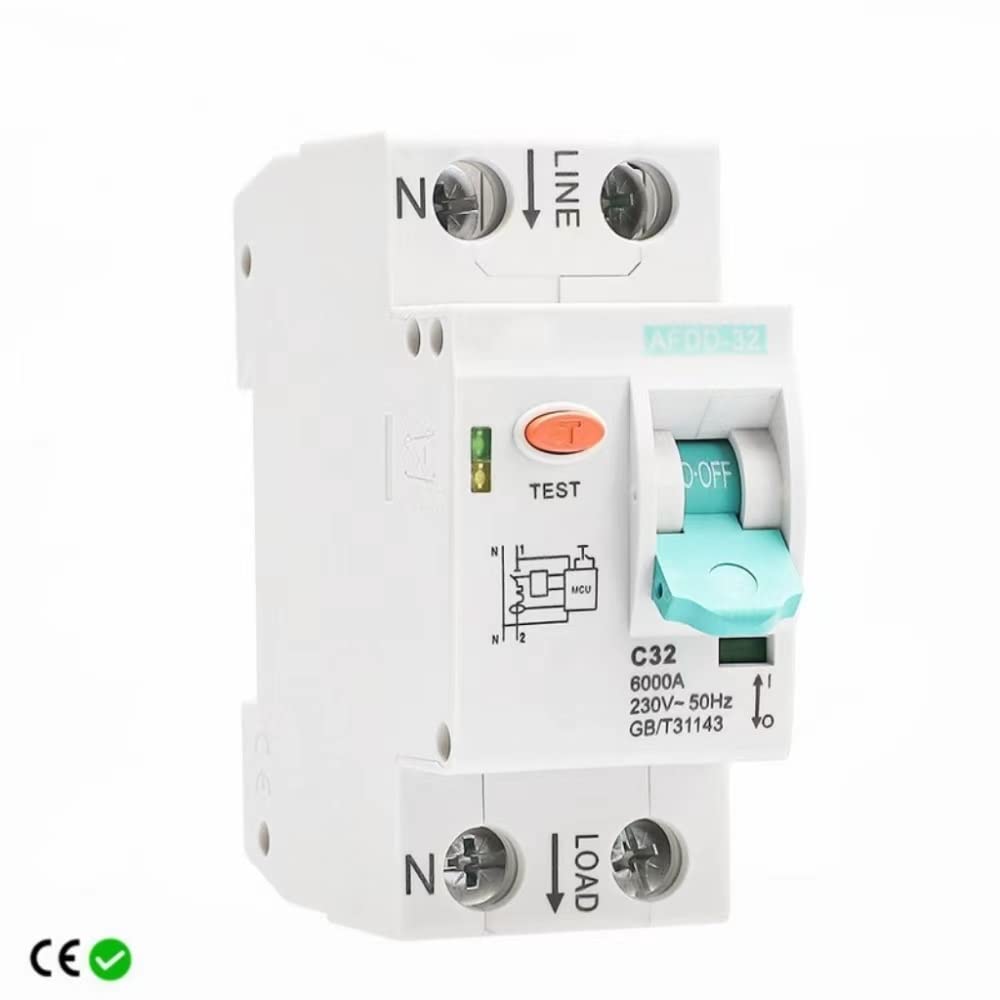

AFDD-32 Arc Fault Detecion Device Circuit Breaker Interrupte Overload Short Circuit Protection AFDD+MCB 32A 6KA 1P+N (Size : C Curve, Color : 25A)

1). Rated voltage (Ue) : AC230V 2). Rated frequency: 50HZ20%3). Rated insulation voltage (Ui) : 400V 4). Rated impulse withstand voltage(Uimp): 4KV 5). Rated current (In) : 6A, 10A, 16A, 20A, 25A, 32 A6). Magnetic tripping type: B-Curve, C-Curve7). Rated service short circuit capacity (lcs) : 6KA 8). Rated short circuit capacity (lcn) : 6KA Test Button Indicator Status:Normal -Green Indicating LightFault-Yellow Indicating Light

• AFDD2-32 incorporating MCB and arc fault detection module, provides protection against short circuit, overload and arc fault. The incorporated arc fault module detects and identify arc fault, which enables the product effectively disconnect the protected circuit against arc fault.
• Applicable to AC circuit with rated current up to 32A, is widely used for household and similar installations. The arc fault detection module of AFDD can effectively detect and identify arc faults happened to different circuits connected in series, in parallel and to earth resulted from disabled insulation layer due to aging, damaging or high humidity. The product trips and disconnects a protected circuit upon detection of arc faults.
• Inspection should be carried out before installation to ensure the product is intact and flexible, the mark is in conformity with the usage requirement.
• A protective metal panel with earth connection or a panel made of insulated material shall be mounted as prevention against electric shock if an AFDD is installed separately other than being installed in a distribution box.
• Any calibrationon AFDD-32 by user is prohibited
