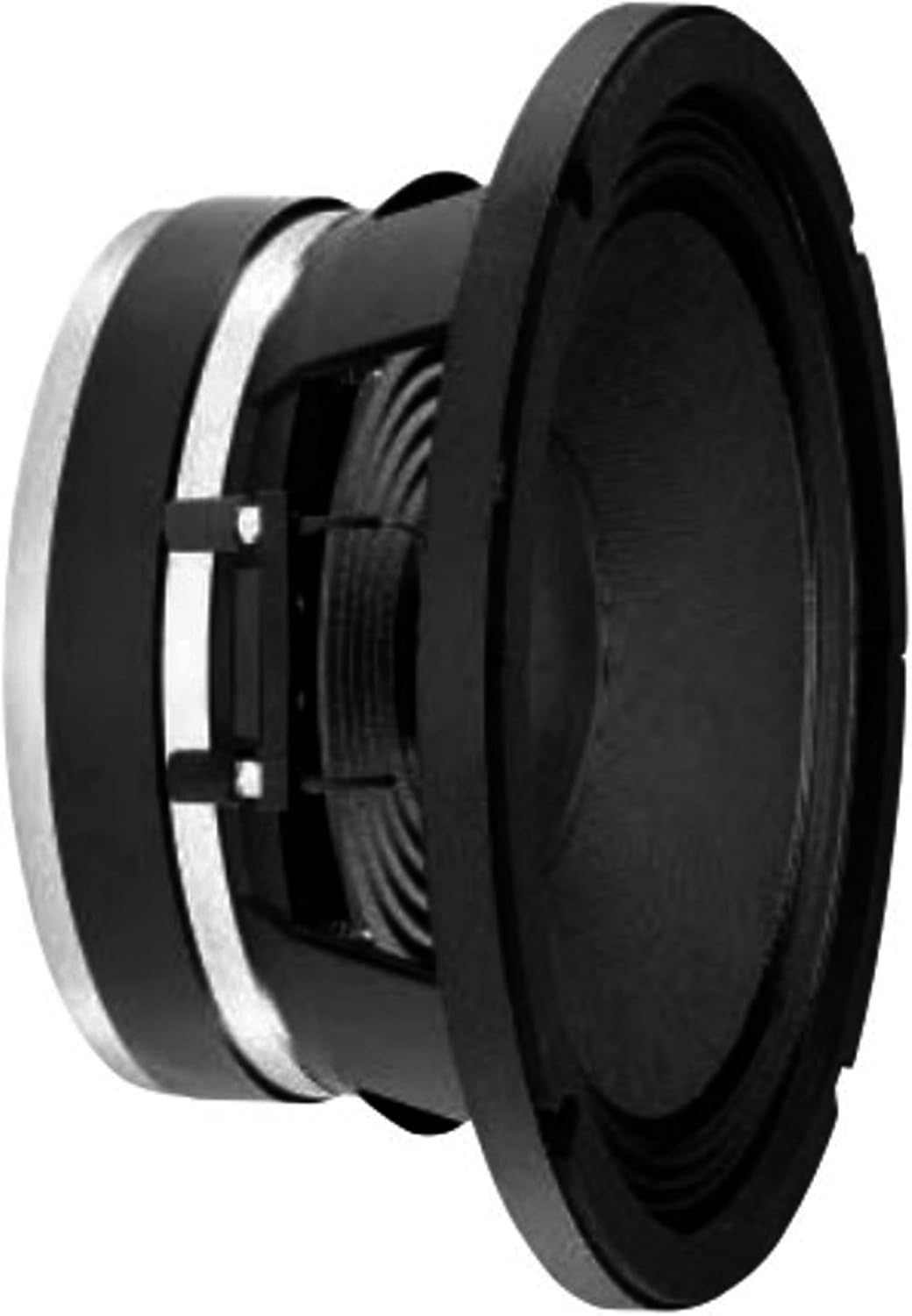

B&C Speakers 10PE26-8 LF Drivers 10-inch High Efficiency Mid-Bass, 2.5-inch Aluminium Voice Coil 250 Watts Rms 500 Watts Max 8 Ohms Pro Audio Component Speaker Driver for Motorcycle Car
Product details
| Management number | 215131919 | Release Date | 2026/04/12 | List Price | US$86.72 | Model Number | 215131919 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
B&C Speaker 10PE26-8 LF Drivers 10-inch High Efficiency Mid-Bass, 2.5-inch Aluminium Voice Coil 250 Watts Rms 500 Watts Max 8 Ohms Pro Audio Component Speaker Driver for Motorcycle Car || SPECIFICATIONS Nominal Diameter : 250 mm (10 in.) | Nominal Impedance : 8Ω | Minumum Impedance : 6.9Ω | Power Handling : (60 –600 Hz) | Nominal1 : 250 W | Continuous Program2 : 500 W | Sensitivity (1W/1m)3 : 99 dB | || SPECIFICATIONS Sensitivity (1W/1m)3 : 99 dB | Frequency Range : 60-4000 Hz | Voice Coil Diameter : 65 mm (2.5 in.) | Winding Material : Aluminium | Former Material : Glass Fibre | Winding Depth : 12 mm (1/2 in.) | Magnetic Gap Depth : 8 mm (5/16 in.) | Flux Density : 1.25 T | || THIELE & SMALL PARAMETERS4 Fs : 60 Hz | Re : 5.7Ω | Qes : 0.19 | Qms : 6.3 | Qts : 0.18 | Vas : 37 dm.3 (1.3 cu. ft.) | Sd : 320 cm.2 (49.1 sq. in.) | η0 : 4.1 % | X max : ± 2.4 mm. | Mms : 27 gr. | Bl : 17.7 Tm | Le : 1.3 mH | || MOUNTING AND SHIPPING INFORMATIONS Overall Diameter : 260 mm. (10.2 in.) | Bolt Circle Diameter : 244 mm. (9.6 in.) | Baffle Cutout Diameter : 228 mm. (8.8 in.) | Depth 110 mm. : (4.3 in.) | Flange and Gasket Thickness : 17 mm. (2/3 in.) | Net Weight : 7.1 Kg. (15.6 lb.) | Shipping Weight : 7.8 Kg. (17.2 lb.) | Shipping Box : 320x320x160 mm / (12x12x6.3 in.) | || A proven B&C suspension system combines a triple roll surround and single spider for superior, reliable Xmax and balanced output. An aluminum demodulation ring keeps distortion low, while the deeper, high power voice coil is cooled using a ventilated voice coil gap. Extreme performance and reliability, excellent value.
- "SPECIFICATIONS Nominal Diameter : 250 mm (10 in.) | Nominal Impedance : 8Ω | Minumum Impedance : 6.9Ω | Power Handling : (60 –600 Hz) | Nominal1 : 250 W | Continuous Program2 : 500 W | Sensitivity (1W/1m)3 : 99 dB | "
- "SPECIFICATIONS Sensitivity (1W/1m)3 : 99 dB | Frequency Range : 60-4000 Hz | Voice Coil Diameter : 65 mm (2.5 in.) | Winding Material : Aluminium | Former Material : Glass Fibre | Winding Depth : 12 mm (1/2 in.) | Magnetic Gap Depth : 8 mm (5/16 in.) | Flux Density : 1.25 T | "
- "THIELE & SMALL PARAMETERS4 Fs : 60 Hz | Re : 5.7Ω | Qes : 0.19 | Qms : 6.3 | Qts : 0.18 | Vas : 37 dm.3 (1.3 cu. ft.) | Sd : 320 cm.2 (49.1 sq. in.) | η0 : 4.1 % | X max : ± 2.4 mm. | Mms : 27 gr. | Bl : 17.7 Tm | Le : 1.3 mH | "
- "MOUNTING AND SHIPPING INFORMATIONS Overall Diameter : 260 mm. (10.2 in.) | Bolt Circle Diameter : 244 mm. (9.6 in.) | Baffle Cutout Diameter : 228 mm. (8.8 in.) | Depth 110 mm. : (4.3 in.) | Flange and Gasket Thickness : 17 mm. (2/3 in.) | Net Weight : 7.1 Kg. (15.6 lb.) | Shipping Weight : 7.8 Kg. (17.2 lb.) | Shipping Box : 320x320x160 mm / (12x12x6.3 in.) | "
- "A proven B&C suspension system combines a triple roll surround and single spider for superior, reliable Xmax and balanced output. An aluminum demodulation ring keeps distortion low, while the deeper, high power voice coil is cooled using a ventilated voice coil gap. Extreme performance and reliability, excellent value."
| Brand | B&C Speakers |
|---|---|
| Impedance | 8 Ohms |
| MP3 player | No |
| Model Name | B&C Speaker |
| Unit Count | 1.0 Count |
| Item Weight | 15.6 Pounds |
| Manufacturer | B&C Speaker |
| Model Number | 10PE26-8 |
| Power Source | Corded Electric |
| Speaker Size | 10 Inches |
| Speaker Type | Surround Sound |
| BuiltIn Media | B&C Speaker 10PE26-8 LF Drivers 10-inch |
| Is Waterproof | False |
| Mounting Type | Flush Mount |
| Control Method | Touch |
| Controller Type | Ring |
| Number of Items | 1 |
| Woofer Diameter | 10 Inches |
| Antenna Location | For Surround Sound Systems |
| Tweeter Diameter | 10 Inches |
| Audio Driver Size | 10 Inches |
| Audio Driver Type | Dynamic Driver |
| Audio Output Mode | Surround |
| Compatible Devices | Smartphone, Tablet, MP3 Player, Laptop |
| Enclosure Material | Aluminium, Glass Fibre |
| Frequency Response | 4000 Hz |
| Subwoofer Diameter | 10 Inches |
| Additional Features | Bass Boost |
| Battery Average Life | 1 Hours |
| Customer Package Type | Standard Packaging |
| Water Resistance Level | Not Water Resistant |
| Connectivity Technology | Auxiliary |
| Number of Audio Channels | 2.0 |
| Item Dimensions D x W x H | 12"D x 6.3"W x 12"H |
| Specific Uses For Product | For Surround Sound Systems |
| Speaker Maximum Output Power | 500 Watts |
| Subwoofer Connectivity Technology | Wired |
