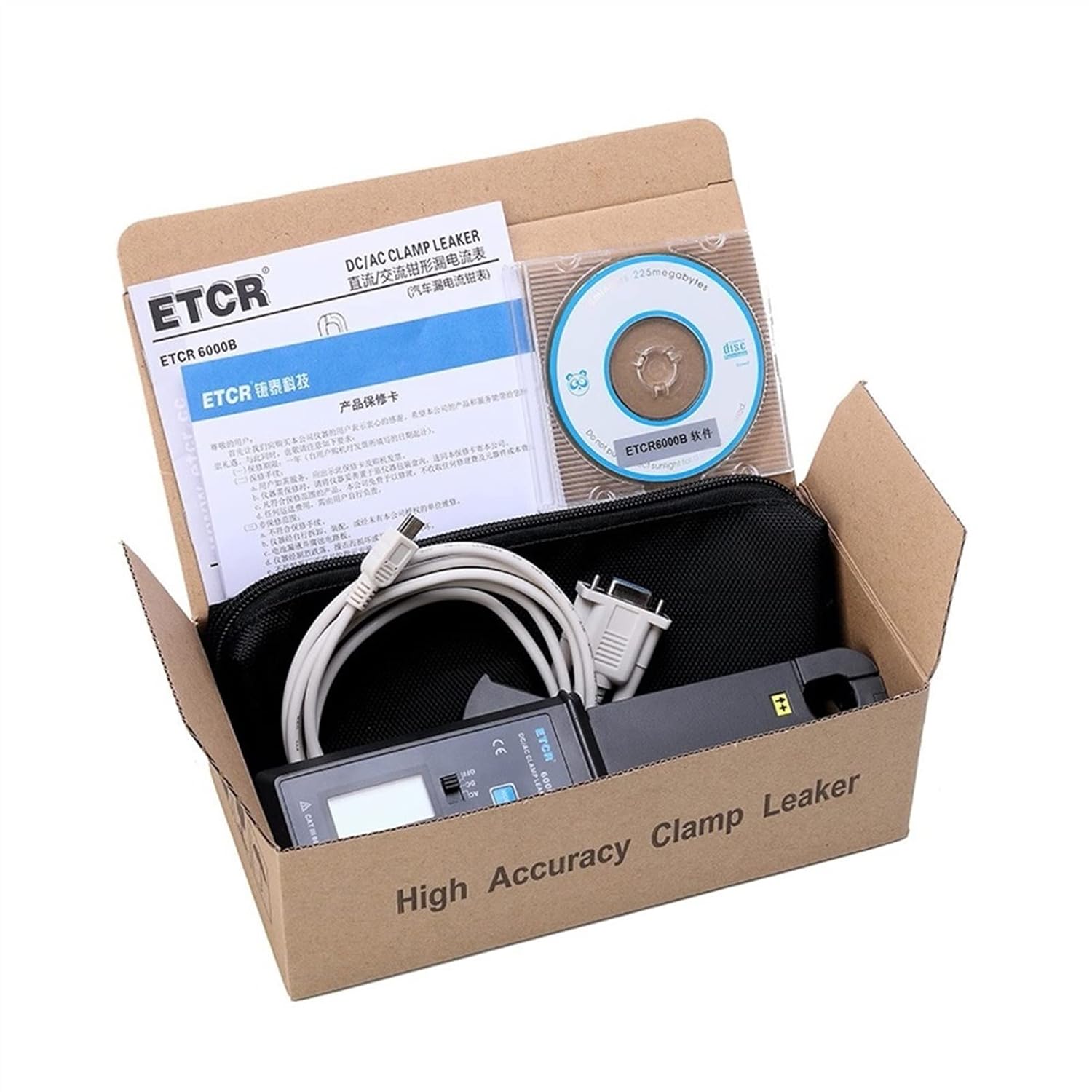

Clamp Ammeter, AC/DC Leakage Current Tester Clamp-on Leakage Current Meter 0mA～60.0A Online Current Test Meter ETCR6000B(ETCR6000)

ETCR6000B DC/AC clamp-on leakage current meter is specially designed and manufactured for online measurement of DC and AC leakage current and current of 600V and below. It adopts CT and digital integration technology, and the clamp head is slender and designed. It is especially suitable for places with dense wiring. (Electricity metering system, high-speed rail system, automobile circuit maintenance, etc.), non-contact measurement to ensure safe operation. The instrument is small in size, high in accuracy, stable in performance and complete in functions. It is widely used in electric power, communications, meteorology, railways, automobile industry, oil fields, construction, measurement, scientific research and teaching units, industrial and mining enterprises and other fields. It is a necessary tool for electrician safety inspection and maintenance.ETCR6000B DC/AC clamp leakage current meter is also known as: DC leakage current clamp meter, automobile DC leakage current clamp meter, AC and DC clamp leakage current meter. The meter has functions such as data retention and data storage. It is equipped with RS232 interface, communication line and software. Historical data can be uploaded to the computer for easy reading, saving and printing.Specification:Function: AC and DC leakage current, current measurementPower source: Alkaline dry battery 6LR61 9V, continuous use for 40 hoursMeasuring range: 0mA～60.0A AC/DCResolution: 1mA AC/DCAccuracy: ±2%rdg±5dgt (23℃±5℃, below 75%rh)Meter quality: 220g (including battery)Instrument size: height, width and thickness: 215mm×65mm×34mmJaw size: 16mm×18mmLCD size: 35mm×21.5mm; display area: 32mm×15mmSampling rate: 2 times/secDisplay mode: 4-digit LCD displayTest method: Clamp-on CT, non-contact measurementFrequency response: AC: 45Hz～400Hz; DC: DC～10kHzCommunication interface: with RS232 interface, the stored data can be uploaded to the computer, saved and printedCommunication parameters: baud rate 9600, data bit 8, stop bit 1, parity bit NONEData storage: 99 groups, flashing "FULL" symbol indicates that the storage is fullData retention: data retention function: "DH" symbol displayOverflow display: over-range overflow function: "OL A" symbol displayPolarity indication: automatic recognition when DC current is detected, display "-" signAutomatic shutdown: 5 minutes after power on, the meter will automatically shut down to reduce battery consumptionBattery voltage: When the battery voltage drops to 7.2V, the battery voltage low symbol is displayed, reminding to replace the batteryWorking current: 10mAWire position: the wire to be detected is at the center of the jawsLine voltage: 600V and below line testWorking temperature and humidity: -10℃～50℃; below 80%rhLimit temperature error: -10℃～0℃ and 40℃～50℃, the error is increased by 2%rdg maximumStorage temperature and humidity: -10℃～60℃; below 70%rhInsulation strength: AC 3700V/rms (between core and box)Suitable for safety regulations: IEC1010-1, IEC1010-2-032, pollution degree 2, CAT Ⅲ (600V)Shift: Fully automatic switchingSupplied accessories: clamp meter: 1 piece; RS232 dedicated communication line: 1 piece; software CD: 1 piece; battery 6LR61 9V: 1 piece; cloth bag: 1 piece

• ★High-precision technology, high measurement accuracy, strong reliability, and bandwidth response frequency
• ★High-quality materials, stronger anti-interference performance
• ★Specially designed and manufactured for on-site online testing, monitoring, and recording of AC leakage current and large current
• ★It is especially suitable for current testing in places with dense cables, core current test of transformers connected to the wall by subway, testing of thick wires and cables, relay protection, power electronic conversion equipment, arc welding and other industrial environments where the signal is severely distorted.
• ★Its small size, light weight, exquisite appearance, soft and flexible, suitable for narrow environments and places with dense cables
