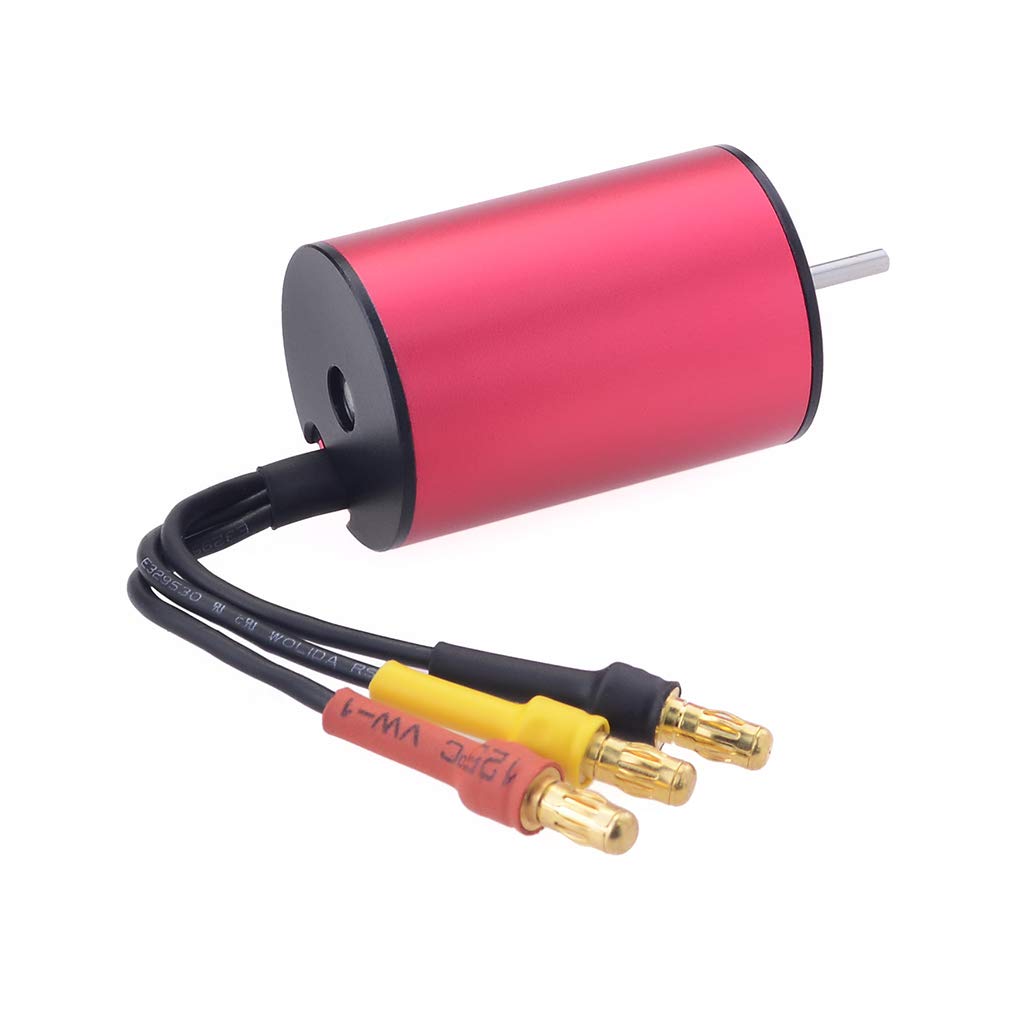

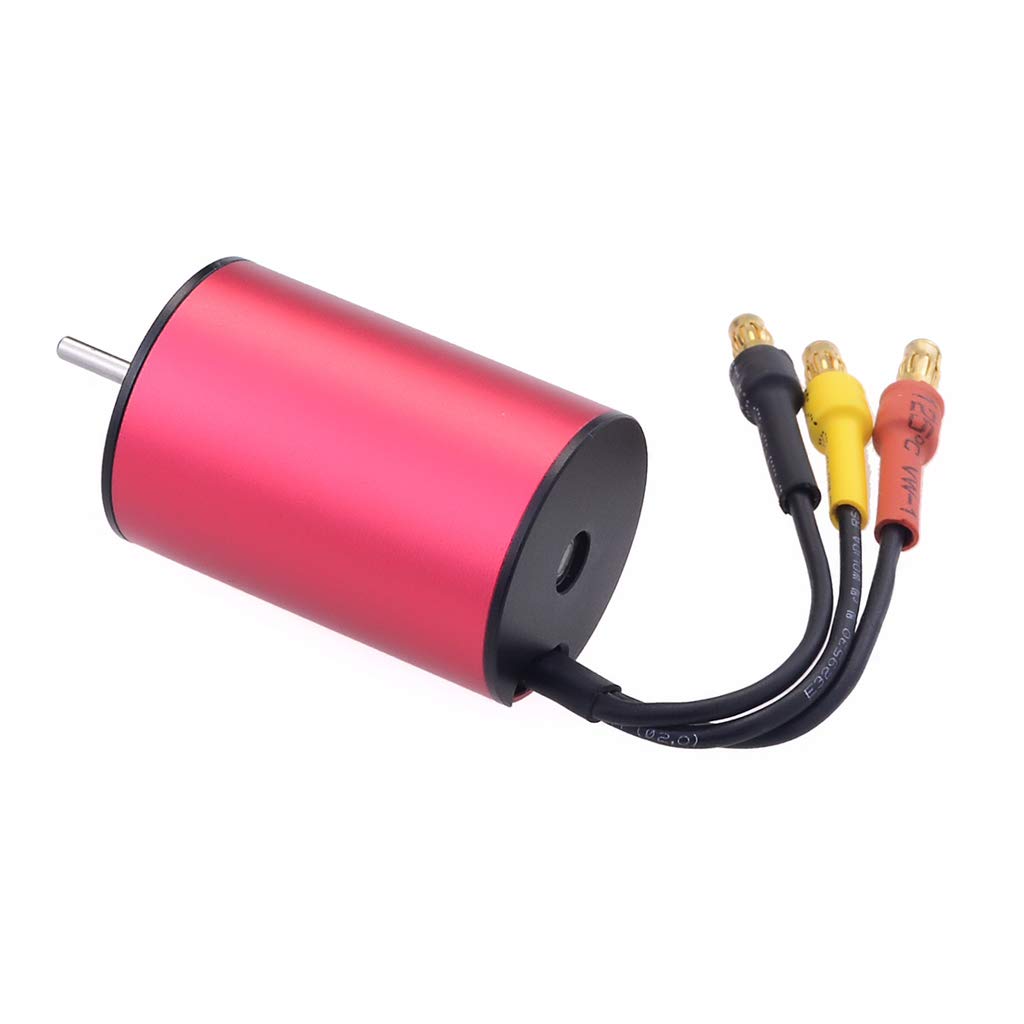

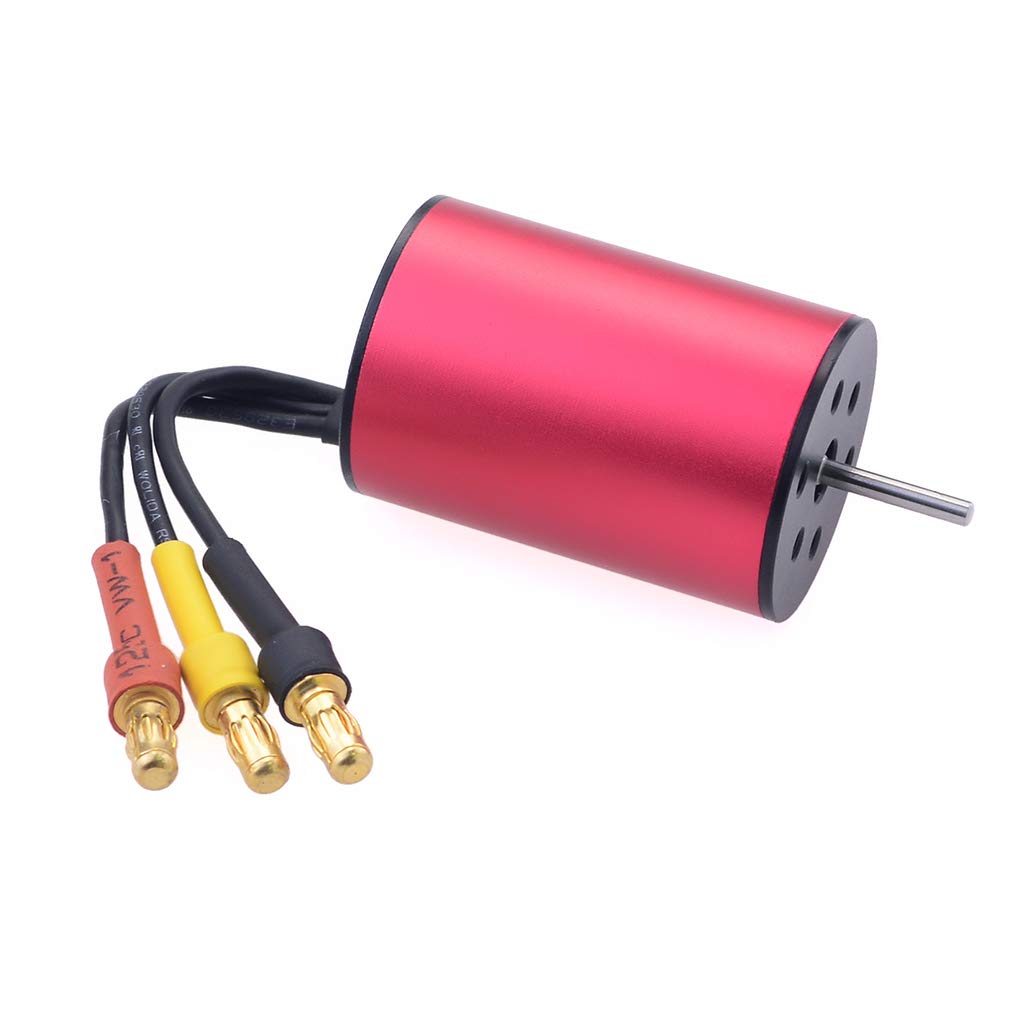

KingVal Replacement 2435 6100KV Waterproof Brushless Motor Shaft 2.3mm with 35A Brushless ESC Compatible with 1/16 1/18 RC Car
Product details
| Management number | 213296488 | Release Date | 2026/04/12 | List Price | US$36.00 | Model Number | 213296488 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

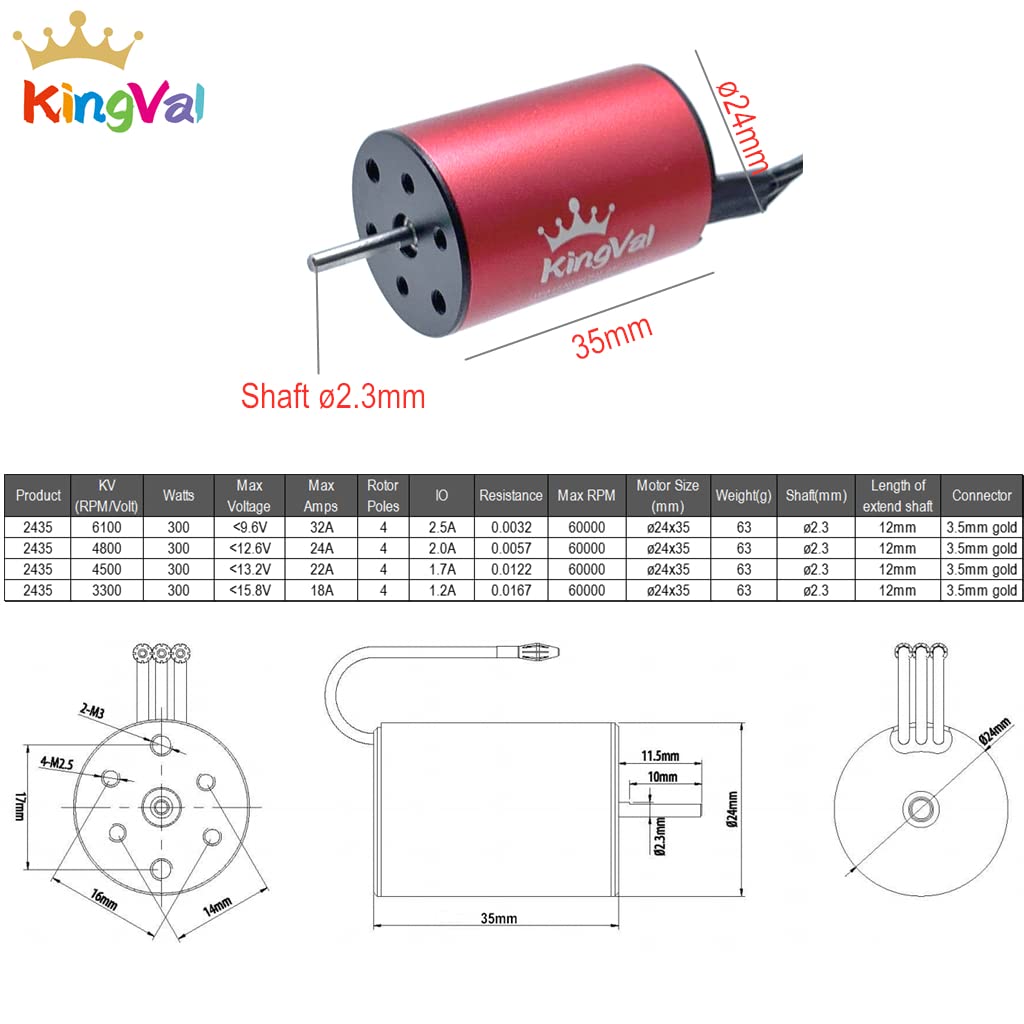

Features:★4 Pole 12 Slot Hi-torque Motor Design★CNC Machined 6061 T6 Billet Aluminum Heatsink Can★High Purity Copper Windings Maximizes Efficiency★High RPM ABEC5 Oversized Bearings★Universal fit,fits all 1/16th, 1/18th brushless cars-multi-mounting system for M2.5 or M3 screws★Precision balanced rotor,smoothness for best reliability and maximum RPM★Stator - Super Thin (0.35mm) Laminations★Removable/Replaceable Rotor★Precision Engineered for Maximum Energy ConversionSpecification:Brand: KingValProduct: 2435 Waterproof Brushless MotorKV(RPM/Volt): 6100Watts: 300Max voltage: <9.6V(2S Lipo)Max Amps: 32ARotor Poles: 4IO: 2.5AResistance: 0.0032Max RPM: 60000Shaft Diameter: ø2.3mmLength of extend shaft: 12mmConnector: 3.5mm goldN.W: 63g35A ESC:Con. Current/Burst Current: 35A/120AMotor Type: Sensorless Brushless MotorSuitable Car: 1/16,1/14 carFor 2S Lipo or 6 cells NiMH: 1.On-road: 28xx-size or smaller motor with the KV<6000; 2.Off-road/Buggy/Monster: 28xx-size or smaller motor with the KV<4000For 3S Lipo or 9 cells NiMH: 1.On-road: 28xx-size or smaller motor with the KV<4000; 2.Off-road/Buggy/Monster: 28xx-size or smaller motor with the KV<3000Resistance: 0.007ohmBattery: 2-3 cells Lipo, 4-9 cells NiMHBEC Output: 5V/2A(analog mode)Demension: 25*30*18.5mmPackage List:1 x 2435 Brushless Motor1 x 35A Brushless ESC2 x Manual
- 4 Pole 6 Slot Hi-torque Motor Design
- CNC Machined 6061 T6 Billet Aluminum Heatsink Can
- High Purity Copper Windings Maximizes Efficiency; High RPM ABEC5 Oversized Bearings
- This combo universal fit, fits all 1/16th, 1/18th brushless cars-multi-mounting system for M2.5 or M3 screws
- Precision balanced rotor,smoothness for best reliability and maximum RPM
| Model | 2.3mm 2435 6100KV+35A |
|---|---|
| Speed | 6100 RPM |
| Voltage | 5 Volts |
| Brand Name | KingVal |
| Horsepower | 300 Watts |
| Item Weight | 130 Grams |
| Manufacturer | KingVal |
| Material Type | Aluminum |
| Shaft Diameter | 2.3 Millimeters |
